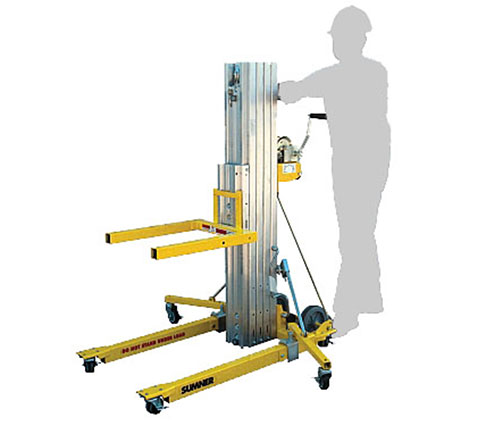

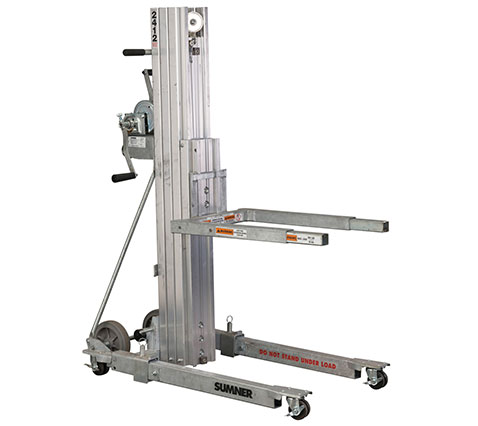

The SUMNER Material Lifts Series 2400 Contractor Lift delivers strength and portability in a compact design. Supporting loads up to 450 lbs / 204 kg and reaching heights of 12 – 16 ft / 3.66 – 4.88 m, this lift is excellent for construction and facility maintenance jobs. It folds down to just over 5 ft / 1.52 m, making it easy to transport and store in work vans or tight jobsite spaces.
Like all SUMNER Material Lifts lifts, the Series 2400 includes internal cable routing, a cable protection system, and tool-free plunger pins. Its compact build doesn’t compromise performance, and its multiple accessory options allow for tailored use across a variety of applications.
Load capacity up to 450 lbs / 204 kg
Lifting heights of 12 – 16 ft / 3.66 – 4.88 m
Collapses to just over 5 ft / 1.52 m for compact storage
360° cable protection and internal routing

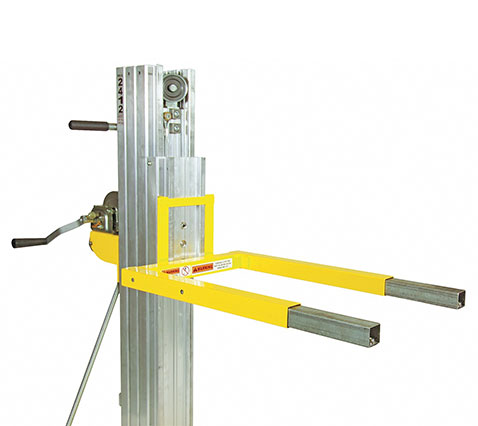

Reversible forks for height extension
Tool-free plunger pin adjustments
Fits easily in vans/SUVs
Optional accessories for greater flexibility
Available in powder-coated and galvanized versions
SUMNER Material Lifts – tested for rugged environments
| Model No. | Description | Height Max. (Forks Up) | Height Max. (Forks Down) | Lift Capacity | Height Stowed | Length Stowed | Width Stowed | Winch Cranks | Basic Weight |
| 784750 | 2412 Contractor Lift | 12′ 113/4″ /4.0 m | 12′ / 3.7 m | 450 lbs / 200 kg | 62¾” / 159.4 cm | 23″ / 58.4 cm | 26⅜” / 67.1 cm | 8 per ft / 24 per m | 195 lbs / 88.5 kg |
| 784751 | 2416 Contractor Lift | 16′ 11⅜” / 5.2 m | 15′ 11⅝” / 4.9 m | 450 lbs / 200 kg | 62¾” / 159.4 cm | 23″ / 58.4 cm | 26⅜” / 67.1 cm | 8 per ft / 24 per m | 243 lbs / 110.2 kg |
| 784752 | 2412 Contractor Lift, Galvanized | 12′ 11¾” / 4.0 m | 12′ / 3.7 m | 450 lbs / 200 kg | 62¾” / 159.4 cm | 23″ / 58.4 cm | 26⅜” / 67.1 cm | 8 per ft / 24 per m | 195 lbs / 88.5 kg |
| 784763 | 2416 Contractor Lift, Galvanized | 16′ 11⅜” / 5.2 m | 15′ 11⅝” / 4.9 m | 450 lbs / 200 kg | 62¾” / 159.4 cm | 23″ / 58.4 cm | 26⅜” / 67.1 cm | 8 per ft / 24 per m | 243 lbs / 110.2 kg |
| Model No. | Part No. | Description | Footprint | Lifting Height | Load Capacity |
| 2412 | 784750 | 2412 Contractor Lift | 48 x 26⅜” / 121.9 x 67.1 cm | 12 ft / 3.66 m | 450 lbs / 204 kg |
| 2416 | 784751 | 2416 Contractor Lift | 48 x 26⅜” / 121.9 x 67.1 cm | 16 ft / 4.88 m | 450 lbs / 204 kg |
| 2412G | 784752 | 2412 Contractor Lift – Galvanized | 48 x 26⅜” / 121.9 x 67.1 cm | 12 ft / 3.66 m | 450 lbs / 204 kg |
| 2416G | 784763 | 2416 Contractor Lift – Galvanized | 48 x 26⅜” / 121.9 x 67.1 cm | 16 ft / 4.88 m | 450 lbs / 204 kg |
| OPTIONAL ACCESSORIES | |||||
| FEXTKIT2400 | 784695 | Fork Extension Install Kit | n/a | n/a | n/a |
| PCRADLE | 783705 | Pipe Cradle (pair) | n/a | n/a | n/a |
| STRAY2400 | 784320 | Steel Tray | n/a | n/a | n/a |
| n/a | 784755 | 2400 Brake | n/a | n/a | n/a |
| Model No. | Part No. | Description | Shipping Weight | Shipping Dimensions |
| 2412 | 784750 | 2412 Contractor Lift | 268 lbs / 122 kg | 32 x 28 x 70″ / 813 × 711 × 1,778 mm |
| 2416 | 784751 | 2416 Contractor Lift | 287 lbs / 130 kg | 32 x 28 x 70″ / 813 × 711 × 1,778 mm |
| 2412G | 784752 | 2412 Contractor Lift – Galvanized | 268 lbs / 122 kg | 32 x 28 x 70″ / 813 × 711 × 1,778 mm |
| 2416G | 784763 | 2416 Contractor Lift – Galvanized | 287 lbs / 130 kg | 32 x 28 x 70″ / 813 × 711 × 1,778 mm |
| OPTIONAL ACCESSORIES | ||||
| Model No. | Part No. | Description | Shipping Weight | Shipping Dimensions |
| FEXTKIT2400 | 784695 | Fork Extension Install Kit | n/a | n/a |
| PCRADLE | 783705 | Pipe Cradle (pair) | n/a | n/a |
| STRAY2400 | 784320 | Steel Tray | n/a | n/a |
| n/a | 784755 | 2400 Brake | n/a | n/a |
