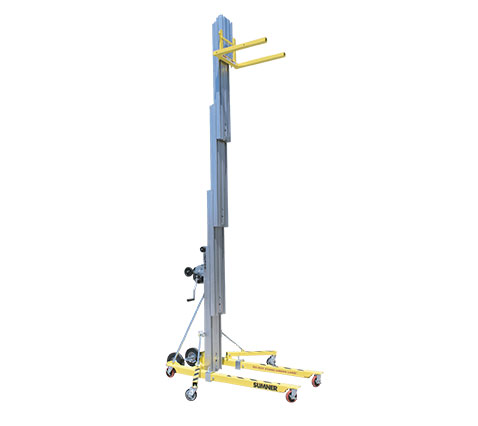

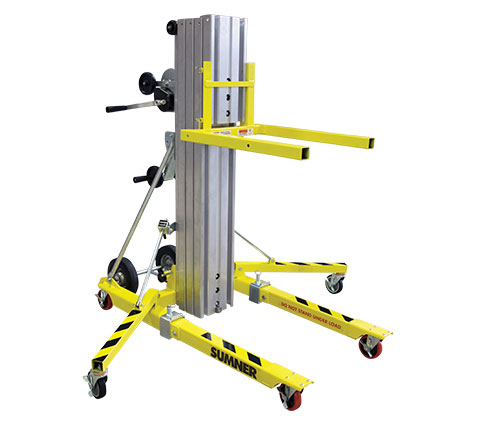

The SHORT STACK™ LIFT (Series 2000 Short Stack) is part of SUMNER MATERIAL LIFTS’ Series 2000 line, offering a compact footprint without compromising lifting power. It handles loads up to 800 lbs / 362 kg and comes in 12 ft / 3.66 m and 16 ft / 4.88 m models. The lift fits through standard doorways, ideal for indoor use. An integrated lifting eye allows it to be flown into position. A pulley guard offers 360° cable protection for operator safety. Forks can be reversed to optimize lift height. Tool-free setup uses plunger pins, reducing lost parts. The internal mast cable prevents exposure. Accessories include a mast brake kit and fork extension. It’s ideal for contractors in confined or elevated spaces.
Lifting capacity of up to 800 lbs / 362 kg
Lifting heights of 12 – 16 ft / 3.66 – 4.88 m
Compact frame easily fits through standard doorways
Internal cable routing prevents operator contact
360° pulley guard enhances operational safety
Reversible forks increase max height
Integrated lifting eye for crane handling
Plunger pins eliminate loose tools and hardware
Tool-free assembly for fast setup and transport
Available in powder-coated or galvanized models
| Model No. | Net Weight | Height Stowed | Length Stowed | Length Operating | Base Width | Width with Stabilizer Legs | Ground Clearance | Load Height | Max. Height |
| 2012S | 320 lbs / 145.1 kg | 63.5″ / 1,612 mm | 34″ / 863 mm | 62″ / 1,574 mm | 31.25″ / 793 mm | 74″ / 1,879 mm | 2.5″ / 63 mm | 6″ / 152 mm | 10′ 11″ / 3.3 m |
| 2016S | 365 lbs / 165.5 kg | 63.5″ / 1,612 mm | 34″ / 863 mm | 73″ / 1,854 mm | 31.25″ / 793 mm | 74″ / 1,879 mm | 2.5″ / 63 mm | 6″ / 152 mm | 14′ 3″ / 4.3 m |
| Model No. | Part No. | Description | Footprint | Lifting Height | Load Capacity |
| 2012S | 786383 | 2012S Short Stack Lift | 62 x 31.25″ / 1,574 x 793 mm | 12 ft / 3.66 m | 800 lbs / 362 kg |
| 2016S | 786382 | 2016S Short Stack Lift | 73 x 31.25″ / 1,854 x 793 mm | 16 ft / 4.88 m | 800 lbs / 362 kg |
| 2012SG | 784093 | 2012S Short Stack Lift – Galvanized | 62 x 31.25″ / 1,574 x 793 mm | 12 ft / 3.66 m | 800 lbs / 362 kg |
| 2016SG | 784087 | 2016S Short Stack Lift – Galvanized | 73 x 31.25″ / 1,854 x 793 mm | 16 ft / 4.88 m | 800 lbs / 362 kg |
| OPTIONAL ACCESSORIES | |||||
| 2000MBK | 783881 | Mast Brake Kit | n/a | n/a | n/a |
| PCRADLE | 783705 | Pipe Cradle (pair) | n/a | n/a | n/a |
| BOOMA | 783642 | Boom Assembly | n/a | n/a | n/a |
| TA | 786320 | Tray Assembly | n/a | n/a | n/a |
| CFEXTKIT | 783691 | Fork Extension Kit | n/a | n/a | n/a |
| Model No. | Part No. | Description | Shipping Weight | Shipping Dimensions |
| 2012S | 786383 | 2012S Short Stack Lift | 327 lbs / 148 kg | 36 x 30 x 67″ / 914 x 762 x 1,702 mm |
| 2016S | 786382 | 2016S Short Stack Lift | 365 lbs / 165 kg | 36 x 30 x 67″ / 914 x 762 x 1,702 mm |
| 2012SG | 784093 | 2012S Short Stack Lift – Galvanized | 327 lbs / 148 kg | 36 x 30 x 67″ / 914 x 762 x 1,702 mm |
| 2016SG | 784087 | 2016S Short Stack Lift – Galvanized | 365 lbs / 165 kg | 36 x 30 x 67″ / 914 x 762 x 1,702 mm |
| OPTIONAL ACCESSORIES | ||||
| 2000MBK | 783881 | Mast Brake Kit | n/a | n/a |
| PCRADLE | 783705 | Pipe Cradle (pair) | n/a | n/a |
| BOOMA | 783642 | Boom Assembly | n/a | n/a |
| TA | 786320 | Tray Assembly | n/a | n/a |
| CFEXTKIT | 783691 | Fork Extension Kit | n/a | n/a |
