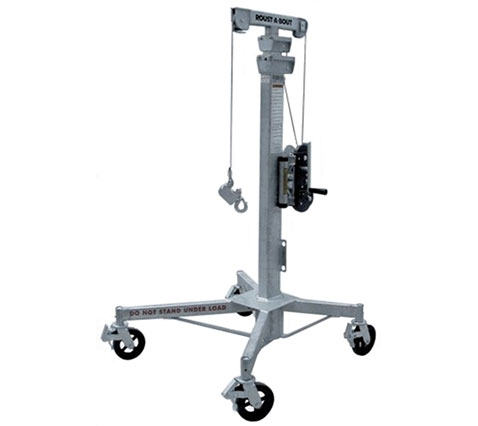

The SUMNER Material Lifts Roust-A-Bout™ stands as a unique lifting solution capable of positioning heavy loads in tight or obstructed locations (the lift fits through a standard door size) – tasks where conventional lifts fall short. Designed to be operated by a single person, this innovative system can lift up to 1,500 lbs / 680 kg and reach heights from 15 ft / 4.57 m to 25 ft / 7.62 m, depending on the model. With its rugged 8″ casters and variable 4-speed winch system, the Roust-A-Bout™ ensures precise load placement and easy mobility, even in challenging environments.
This lift is ideal for use in both workshops and job sites, and its modular construction makes it simple to disassemble for transport or storage. The vertical adjustment feature, using dual winches, offers independent control over load elevation and mast height, allowing for versatile positioning. It’s available in powder-coated and galvanized finishes to meet diverse worksite conditions.
Handles up to 1,500 lbs / 680 kg loads
Lifting heights from 15 – 25 ft / 4.57 – 7.62 m
Dual-winch system for load and mast control
Variable 4-speed winch enhances precision
8″ rugged casters enable horizontal mobility
Single-operator design saves manpower

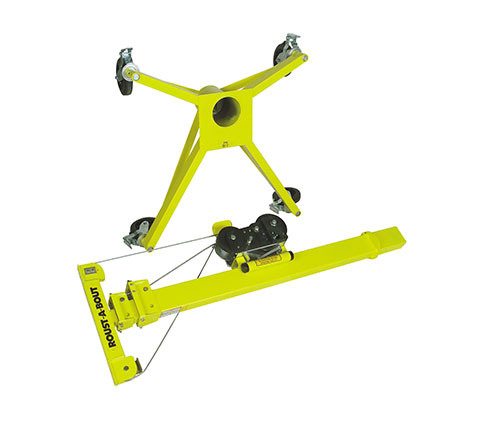

Breaks down quickly for portability
Durable, jobsite-tested construction
Powder-coated and galvanized options available
Compatible with Tee Head extensions for added versatility

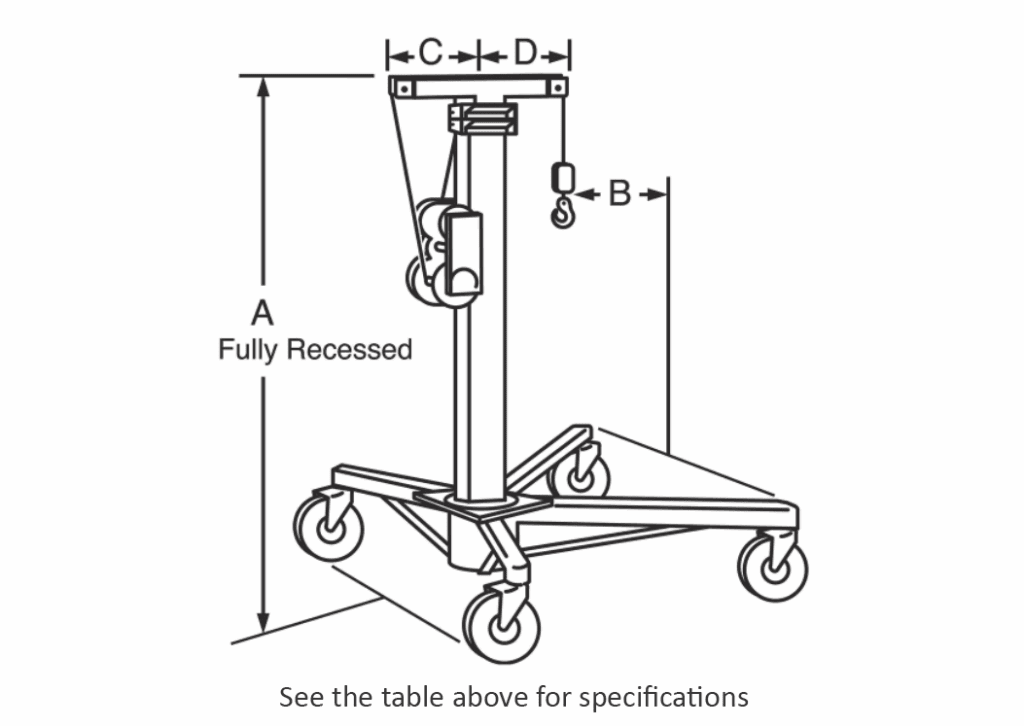

| Part No. | Description | Weigh (lb / kg) | A (inch / mm) | B (inch / mm) | C/D (inch / mm) | Base (inch / cm) | Max. Height (ft / m) |
| 780300 | Roust-A-Bout R-100 with 15 ft / 180″ / 4,572 mm height |
330 / 150 | 79 / 2,000 | 20 / 500 | 12 / 300 | 32 x 40 / 80 x 100 | 15 ft 2½ / 4.6 |
| 780301 | Roust-A-Bout R-150 with 15 ft / 180″ / 4,572 mm height |
336 / 152 | 79 / 2,000 | 20 / 500 | 12 / 300 | 40 x 40 / 100 x 100 | 15 ft 2½ / 4.6 |
| 780302 | Roust-A-Bout R-180 with 18 ft / 216″ / 5,486.4 mm height |
403 / 183 | 126 / 3,200 | 25 / 630 | 14.5 / 360 | 50 x 50 / 125 x 125 | 17 ft 11⅝ / 5.5 |
| 780303 | Roust-A-Bout R-250 with 25 ft / 300″ / 7,620 mm height |
493 / 224 | 119 / 3,020 | 30 / 750 | 17.5 / 440 | 60 x 60 / 150 x 150 | 25 ft ⅜ / 7.6 |
 |
 |
| Model No. | Part No. | Description | Footprint | Lifting Height | Load Capacity |
| R-100 | 780300 | R-100 Roust-A-Bout™ | 32 x 40″ / 813 × 1,016 mm | 15 ft / 4.57 m | 1,500 lbs / 680 kg |
| R-150 | 780301 | R-150 Roust-A-Bout™ | 40 x 40″ / 1,016 × 1,016 mm | 15 ft / 4.57 m | 1,500 lbs / 680 kg |
| R-180 | 780302 | R-180 Roust-A-Bout™ | 50 x 50″ / 1,270 × 1,270 mm | 18 ft / 5.49 m | 1,500 lbs / 680 kg |
| R-250 | 780303 | R-250 Roust-A-Bout™ | 60 x 60″ / 1,524 × 1,524 mm | 25 ft / 7.62 m | 1,500 lbs / 680 kg |
| R-100G | 780195 | R-100G Roust-A-Bout™- Galvanized | 32 x 40″ / 813 × 1,016 mm | 15 ft / 4.57 m | 1,500 lbs / 680 kg |
| R-150G | 780194 | R-150G Roust-A-Bout™- Galvanized | 40 x 40″ / 1,016 × 1,016 mm | 15 ft / 4.57 m | 1,500 lbs / 680 kg |
| R-180G | 780197 | R-180G Roust-A-Bout™- Galvanized | 50 x 50″ / 1,270 × 1,270 mm | 18 ft / 5.49 m | 1,500 lbs / 680 kg |
| R-250G | 780196 | R-250G Roust-A-Bout™- Galvanized | 60 x 60″ / 1,524 × 1,524 mm | 25 ft / 7.62 m | 1,500 lbs / 680 kg |
| Optional Roust-A-Bout™ Accessories | |||||
| Model No. | Part No. | Description | Lifting Height | Load Capacity | |
| THE100/150 | 781060 | R/Z-100/Z-150 Tee Head Extension | n/a | 1,000 lbs / 450 kg | |
| THE180/200 | 781061 | R/Z-180/Z-200 Tee Head Extension | n/a | 1,000 lbs / 450 kg | |
| THE250 | 781062 | R/Z-250 Tee Head Extension | n/a | 1,000 lbs / 450 kg | |
| Model No. | Part No. | Description | Shipping Weight | Shipping Dimensions |
| R-100 | 780300 | R-100 Roust-A-Bout™ | 460 lbs / 208 kg | 84 x 24 x 24″ / 2,134 × 610 × 610 mm |
| R-150 | 780301 | R-150 Roust-A-Bout™ | 460 lbs / 208 kg | 84 x 24 x 24″ / 2,134 × 610 × 610 mm |
| R-180 | 780302 | R-180 Roust-A-Bout™ | 556 lbs / 252 kg | 124 x 24 x 24″ / 3,150 × 610 × 610 mm |
| R-250 | 780303 | R-250 Roust-A-Bout™ | 640 lbs / 290 kg | 124 x 24 x 24″ / 3,150 × 610 × 610 mm |
| R-100G | 780195 | R-100G Roust-A-Bout™- Galvanized | 460 lbs / 208 kg | 84 x 24 x 24″ / 2,134 × 610 × 610 mm |
| R-150G | 780194 | R-150G Roust-A-Bout™- Galvanized | 460 lbs / 208 kg | 84 x 24 x 24″ / 2,134 × 610 × 610 mm |
| R-180G | 780197 | R-180G Roust-A-Bout™- Galvanized | 556 lbs / 252 kg | 124 x 24 x 24″ / 3,150 × 610 × 610 mm |
| R-250G | 780196 | R-250G Roust-A-Bout™- Galvanized | 640 lbs / 290 kg | 124 x 24 x 24″ / 3,150 × 610 × 610 mm |
| Optional Roust-A-Bout™ Accessories | ||||
| Model No. | Part No. | Description | Shipping Weight | Shipping Dimensions |
| THE100/150 | 781060 | R/Z-100/Z-150 Tee Head Extension | n/a | n/a |
| THE180/200 | 781061 | R/Z-180/Z-200 Tee Head Extension | n/a | n/a |
| THE250 | 781062 | R/Z-250 Tee Head Extension | n/a | n/a |
