Description

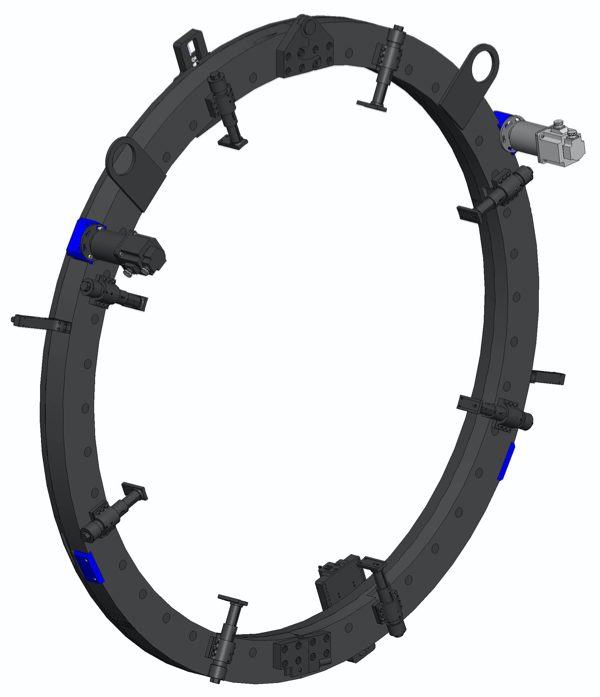

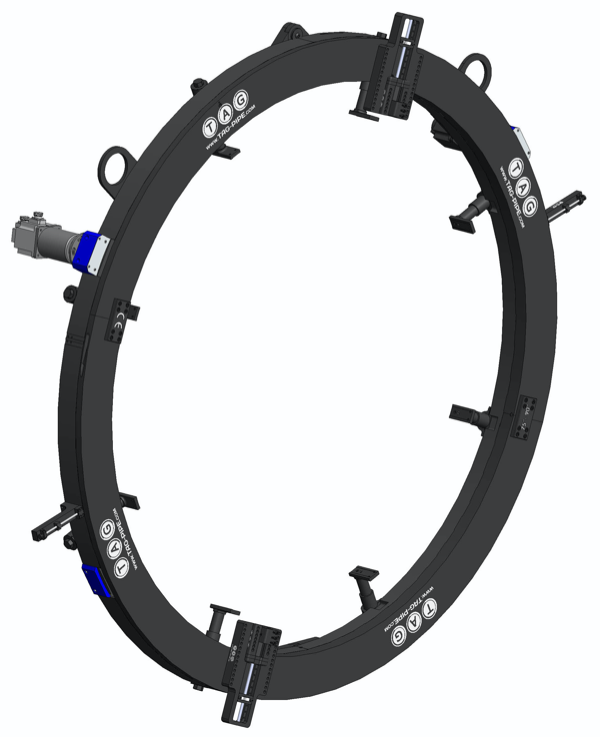

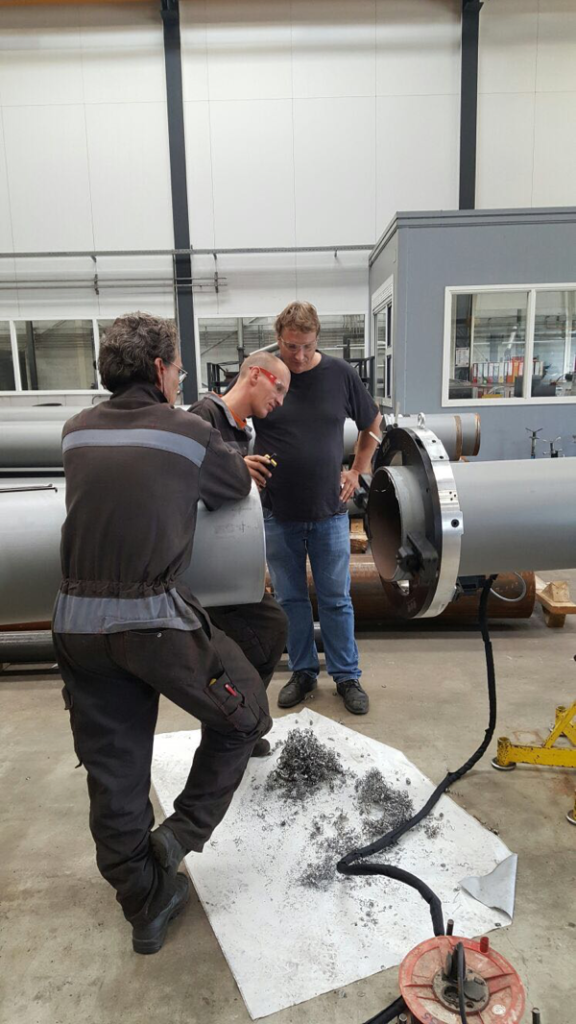

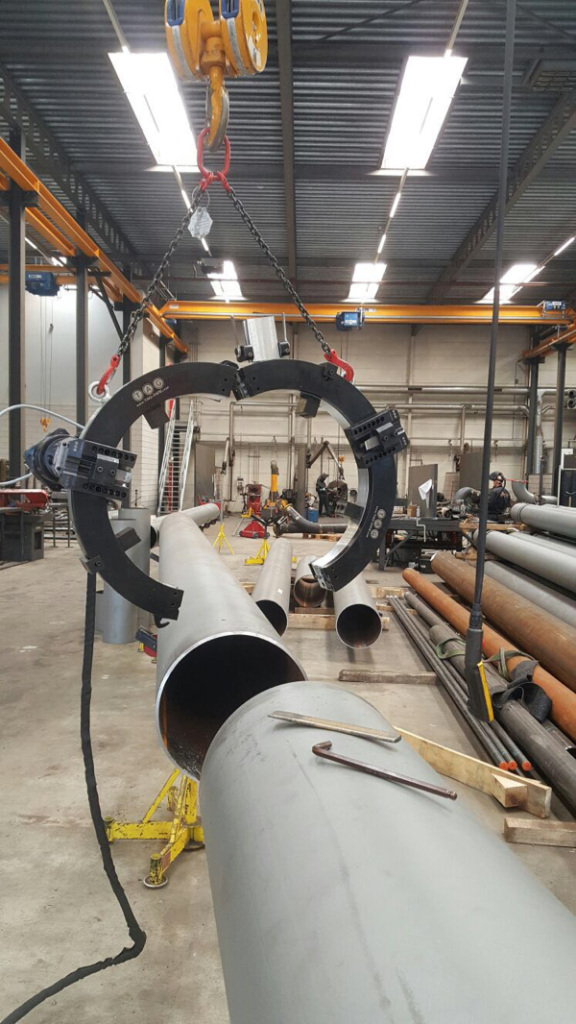

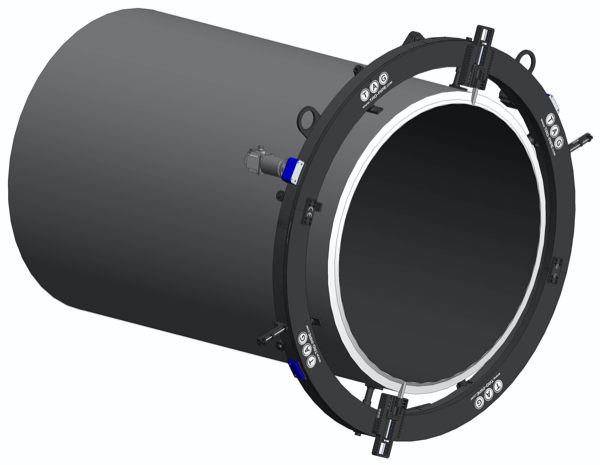

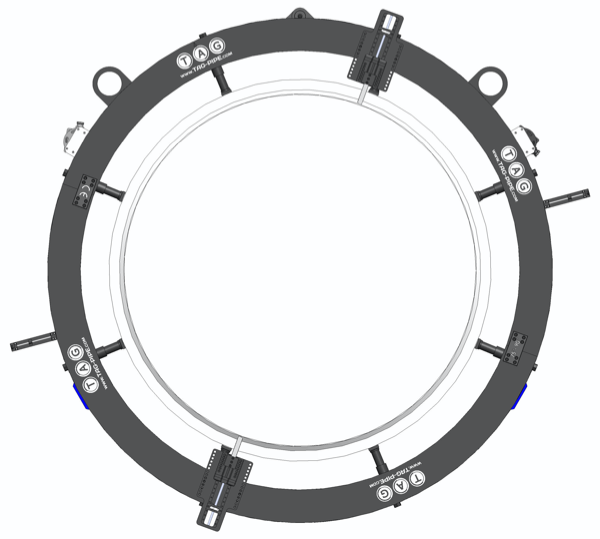

Máy cắt và vát mép ống kích thước lớn của hãng được thiết kế theo tiêu chuẩn công nhgiệp.
PHẠM VI: Đường kính ngoài từ 48″ đến 120″ (1220 – 3050mm)
Hiện hãng cũng có các mẫu máy có kích thước lớn hơn hoặc tùy chỉnh theo ý khách hàng
Xin mời quý khách hàng đặt mua và sử dụng khung cắt và vát mép ống kích thước lớn của hãng ngay hôm nay để có thể tự mình trải nghiệm chất lượng đi đầu, tốt nhất trong ngành.

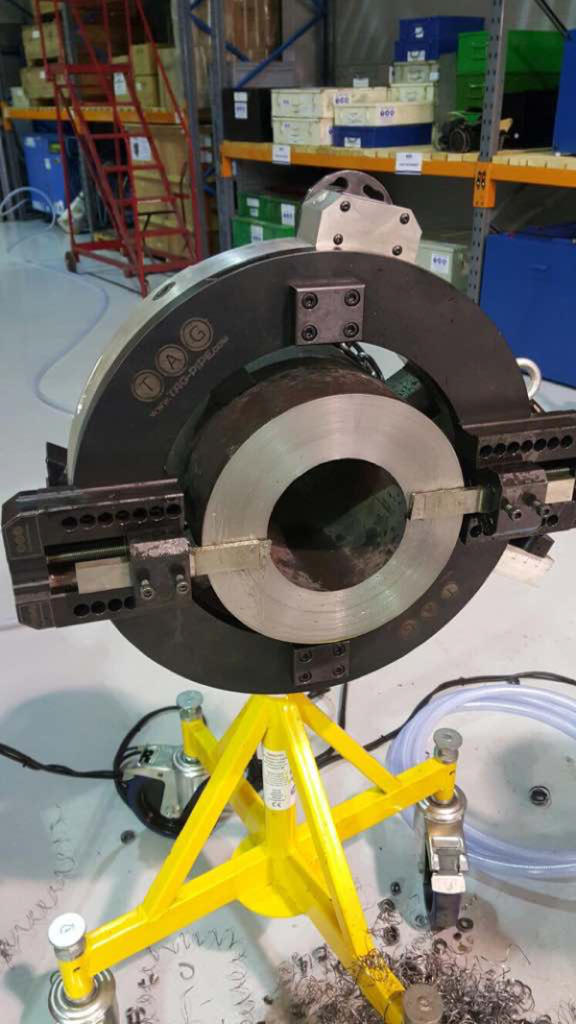

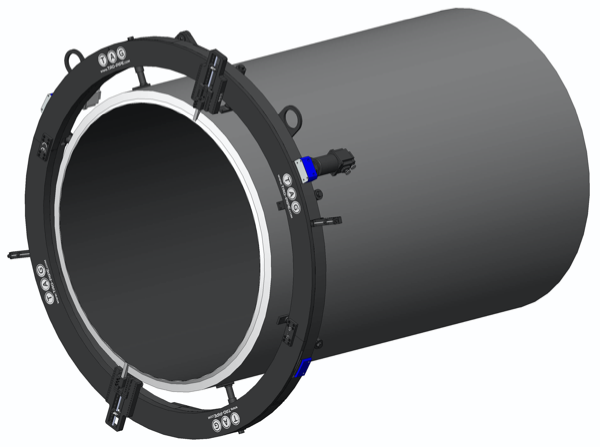

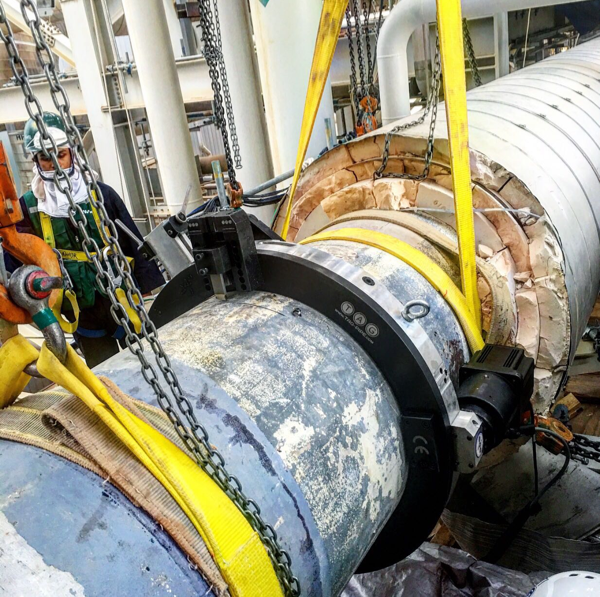

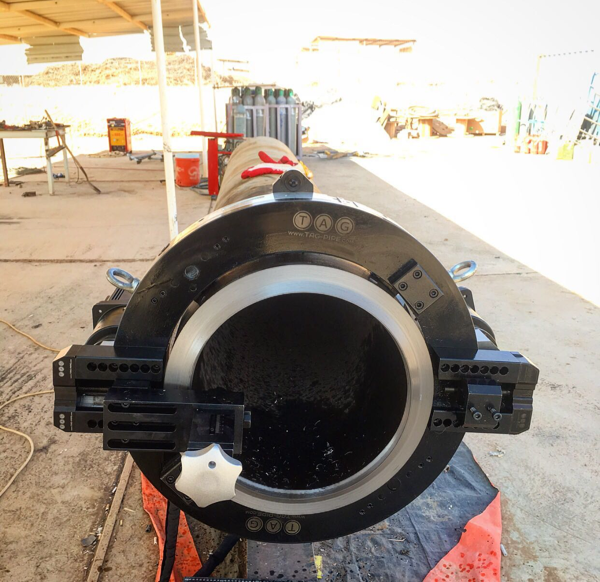

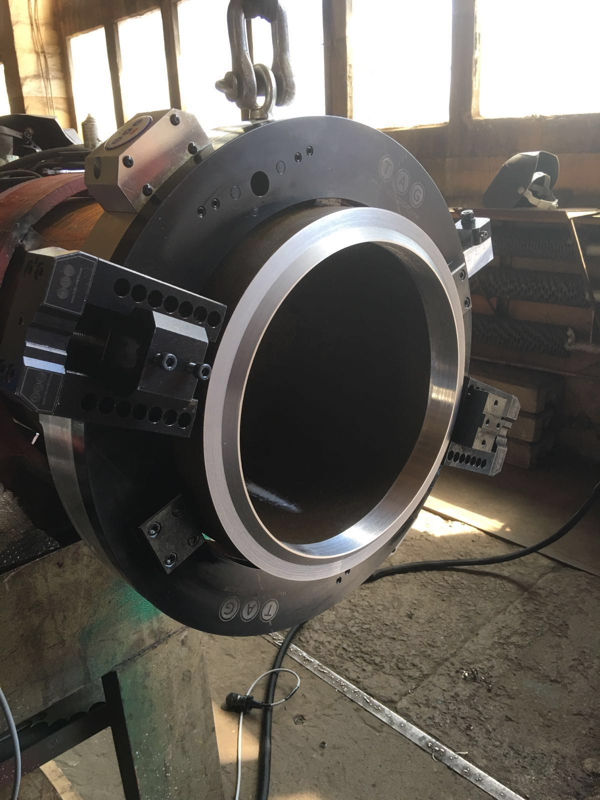

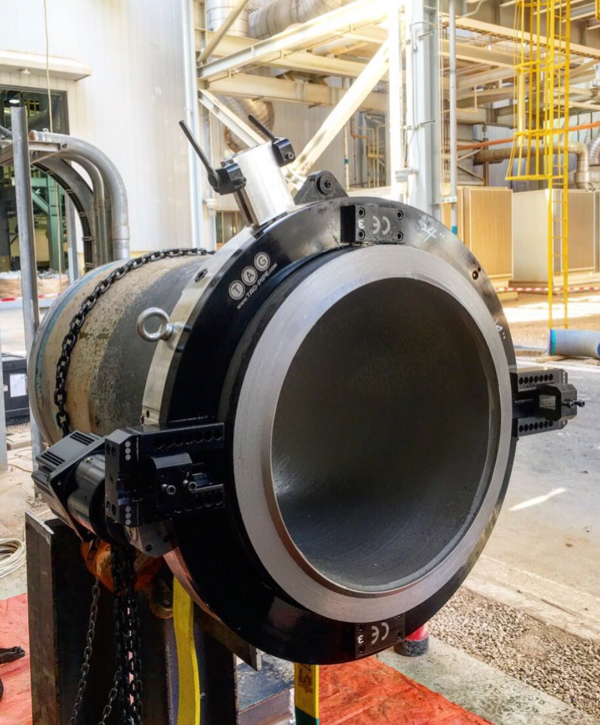

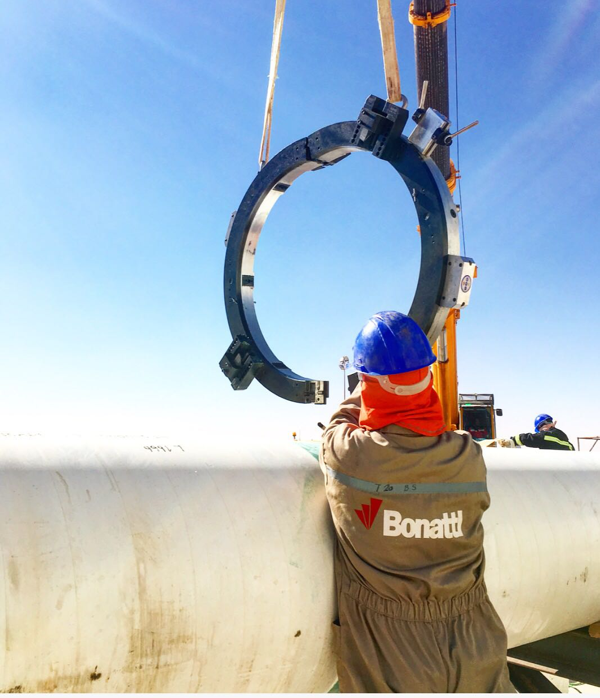

Our large pipe split-frame clamshell cutting & beveling machines are the industry standard.
RANGE: 48″ to 120″ o/d (1,220 – 3,050mm)
Larger sizes and customised machines available upon request
Order our large pipe split-frame clamshell cutting and beveling machines today and see why our products are second to none in the industry.
Specifications

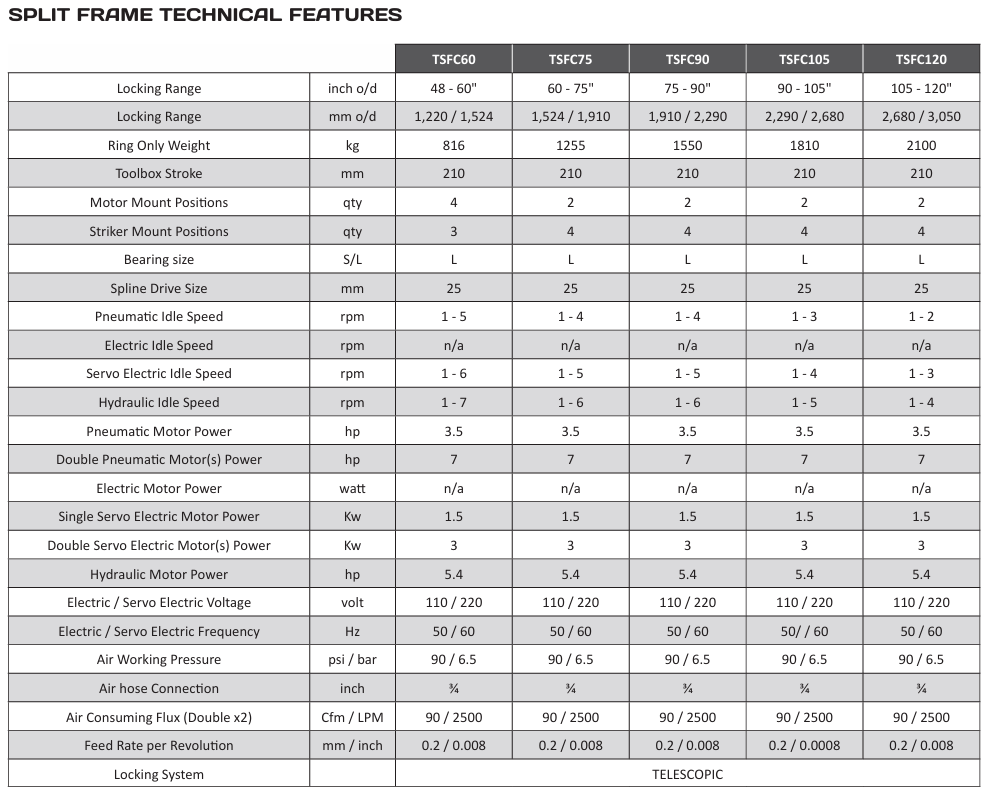

Split Frame Techinical Features
| Description |
TSFC60 |
TSFC75 |
TSFC90 |
TSFC105 |
TSFC120 |
| OD Locking Range (Inch) |
48 – 60″ |
60 – 75″ |
75 – 90″ |
90 – 105″ |
105 – 120″ |
| OD Locking Range (Metric) |
1,220 – 1,524 mm |
1,524 – 1,910 mm |
1,910 – 2,290 mm |
2,290 – 2,680 mm |
2,680 – 3,050 mm |
| Clamping Jaws |
8 |
8 |
12 |
12 |
12 |
| Ring Only Weight |
816 kg |
1255 kg |
1550 kg |
1810 kg |
2100 kg |
| Toolbox Stroke |
210″ / 8.27 mm |
210″ / 8.27 mm |
210″ / 8.27 mm |
210″ / 8.27 mm |
210″ / 8.27 mm |
| Motor Mount Positions |
4 |
2 |
2 |
2 |
2 |
| Striker Mount Positions |
3 |
4 |
4 |
4 |
4 |
| Bearing Size |
L |
L |
L |
L |
L |
| Spline Drive Size |
25 mm / 0.98″ |
25 mm / 0.98″ |
25 mm / 0.98″ |
25 mm / 0.98″ |
25 mm / 0.98″ |
| Pneumatic Idle Speed |
1 – 5 rpm |
1 – 4 rpm |
1 – 4 rpm |
1 – 3 rpm |
1 – 2 rpm |
| Electric Idle Speed |
n/a |
n/a |
n/a |
n/a |
n/a |
| Servo Electric Idle Speed |
1 – 6 rpm |
1 – 5 rpm |
1 – 5 rpm |
1 – 4 rpm |
1 – 3 rpm |
| Hydraulic Idle Speed |
1 – 7 rpm |
1 – 6 rpm |
1 – 6 rpm |
1 – 5 rpm |
1 – 4 rpm |
| Pneumatic Motor Power |
3.5 hp |
3.5 hp |
3.5 hp |
3.5 hp |
3.5 hp |
| Double Pneumatic Motor(s) Power |
7 hp |
7 hp |
7 hp |
7 hp |
7 hp |
| Electric Motor Power |
n/a |
n/a |
n/a |
n/a |
n/a |
| Single Servo Electric Motor Power |
1.5 Kw |
1.5 Kw |
1.5 Kw |
1.5 Kw |
1.5 Kw |
| Double Servo Electric Motor(s) Power |
3 Kw |
3 Kw |
3 Kw |
3 Kw |
3 Kw |
| Hydraulic Motor Power |
5.4 hp |
5.4 hp |
5.4 hp |
5.4 hp |
5.4 hp |
| Electric / Servo Electric Voltage |
110 / 220 volt |
110 / 220 volt |
110 / 220 volt |
110 / 220 volt |
110 / 220 volt |
| 3 Phase Servo Electric Voltage |
380 – 480 volt |
380 – 480 volt |
380 – 480 volt |
380 – 480 volt |
380 – 480 volt |
| Electric / Servo Electric Frequency |
50 / 60 Hz |
50 / 60 Hz |
50 / 60 Hz |
50 / 60 Hz |
50 / 60 Hz |
| Air Working Pressure |
90 psi / 6.5 bar |
90 psi / 6.5 bar |
90 psi / 6.5 bar |
90 psi / 6.5 bar |
90 psi / 6.5 bar |
| Air hose Connection |
3/4″ |
3/4″ |
3/4″ |
3/4″ |
3/4″ |
| Air Consuming Flux (Double x2) |
90 Cfm / 2500 LPM |
90 Cfm / 2500 LPM |
90 Cfm / 2500 LPM |
90 Cfm / 2500 LPM |
90 Cfm / 2500 LPM |
| Feed Rate per Revolution |
0.2 mm / 0.008″ |
0.2 mm / 0.008″ |
0.2 mm / 0.008″ |
0.2 mm / 0.008″ |
0.2 mm / 0.008″ |
| Locking System |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
| Ring weight |
816.0 kg / 1798.97 lbs |
1255.0 kg / 2766.80 lbs |
1550.0 kg / 3417.16 lbs |
1810.0 kg / 3990.36 lbs |
2100.0 kg / 4629.70 lbs |
| Tool box weight (pair) |
60.0 kg / 132.28 lbs |
60.0 kg / 132.28 lbs |
60.0 kg / 132.28 lbs |
60.0 kg / 132.28 lbs |
60.0 kg / 132.28 lbs |
| Double striker |
3.5 kg / 7.72 lbs |
3.5 kg / 7.72 lbs |
3.5 kg / 7.72 lbs |
3.5 kg / 7.72 lbs |
3.5 kg / 7.72 lbs |
| Pneumatic motor |
13.55 kg / 29.87 lbs |
13.55 kg / 29.87 lbs |
13.55 kg / 29.87 lbs |
13.55 kg / 29.87 lbs |
13.55 kg / 29.87 lbs |
| Servo motor & gearbox |
22.5 kg / 49.60 lbs |
22.5 kg / 49.60 lbs |
22.5 kg / 49.60 lbs |
22.5 kg / 49.60 lbs |
22.5 kg / 49.60 lbs |
| Single NC control box 1 motor drive & cables |
33.55 kg / 73.97 lbs |
33.55 kg / 73.97 lbs |
33.55 kg / 73.97 lbs |
33.55 kg / 73.97 lbs |
33.55 kg / 73.97 lbs |
| Double NC control box 2 mo- tor drive & cables |
65.75 kg / 144.95 lbs |
65.75 kg / 144.95 lbs |
65.75 kg / 144.95 lbs |
65.75 kg / 144.95 lbs |
65.75 kg / 144.95 lbs |
| Hydraulic motor |
9.95 kg / 21.94 lbs |
9.95 kg / 21.94 lbs |
9.95 kg / 21.94 lbs |
9.95 kg / 21.94 lbs |
9.95 kg / 21.94 lbs |
| Hand tools + shimms |
4.2 kg / 9.26 lbs |
4.2 kg / 9.26 lbs |
4.2 kg / 9.26 lbs |
4.2 kg / 9.26 lbs |
4.2 kg / 9.26 lbs |
| Filter lubricator & hose |
6.7 kg / 14.77 lbs |
6.7 kg / 14.77 lbs |
6.7 kg / 14.77 lbs |
6.7 kg / 14.77 lbs |
6.7 kg / 14.77 lbs |
