Description

Microfit closed head with cassette for orbital TIG welding, powered by SAXX power source

High level of performance with a high duty cycle

Grease-free operation: compatible with clean room standards

Optimal positioning of tubes and fittings in the cassette with an optimized clamping system, without risk of deforming the part to be welded

Optimized inert gas diffusion: welds with very limited coloration

Easy maintenance and cleaning : thanks to a tool integrated in the machine body.

Specifications

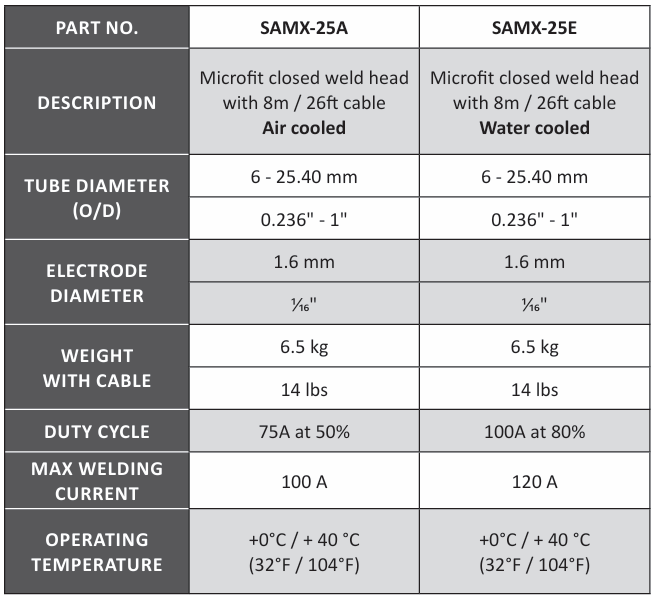

Technical Features

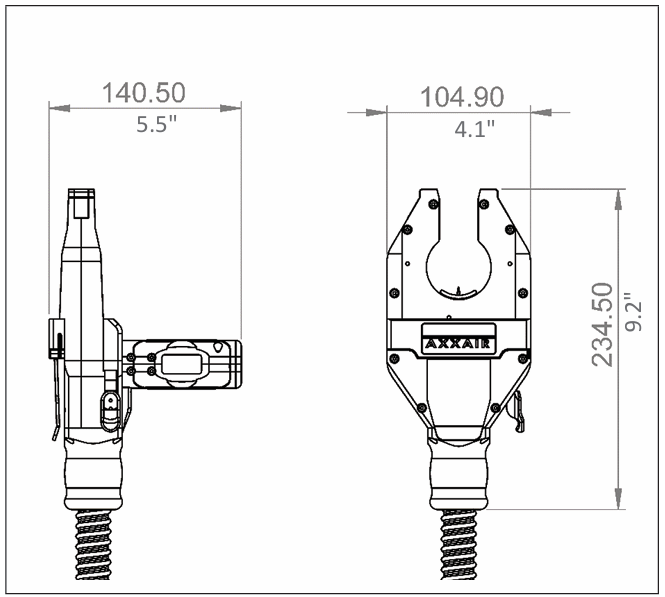

Dimensions (mm/Inch)

Downloads

BROCHURE

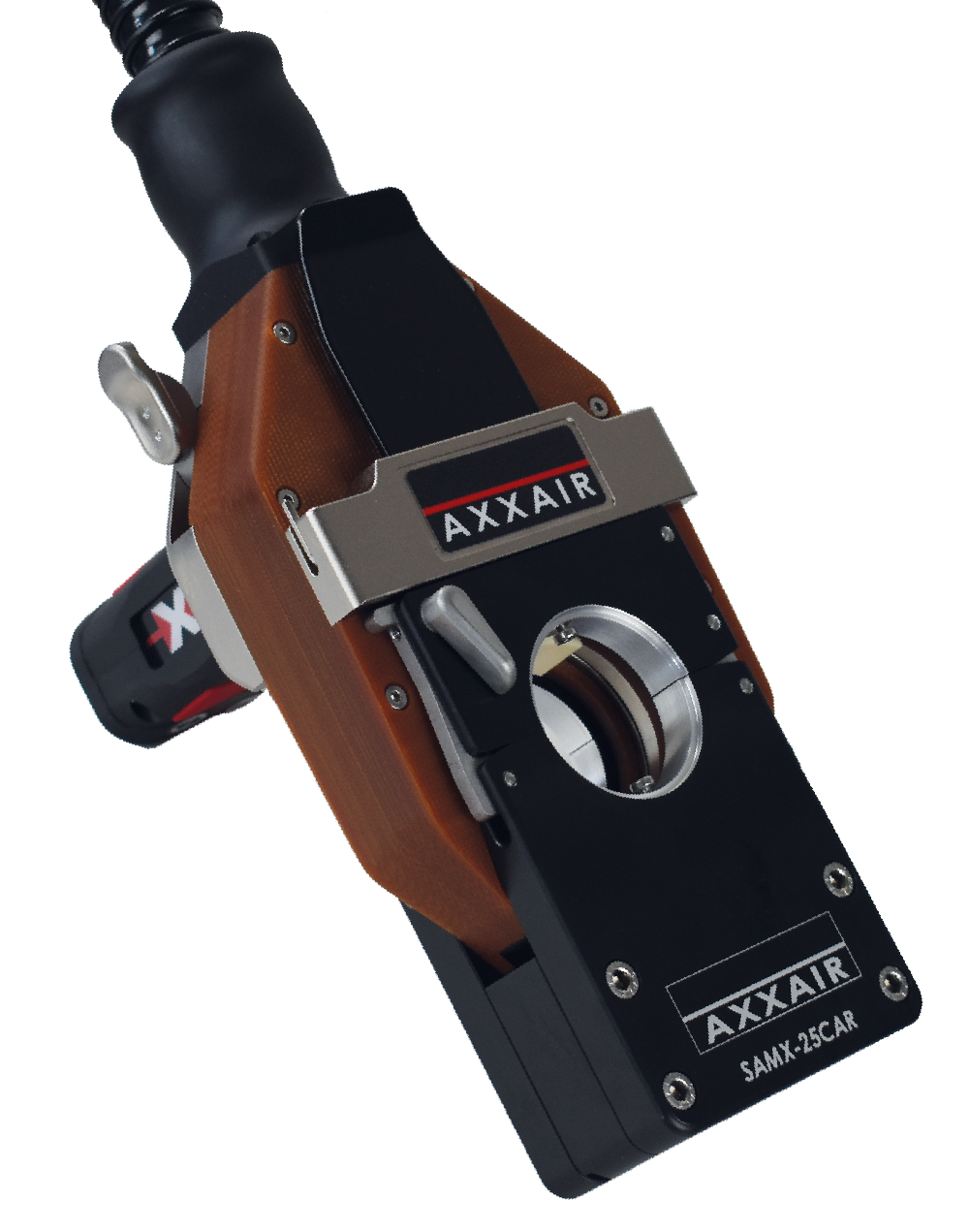

Microfit Closed Weld Head SAMX-25

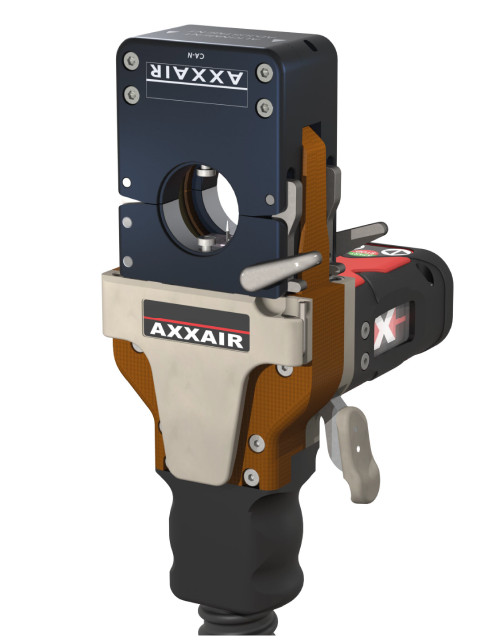

SAMX – 17
