Description
Engineered for precision, power, and safety – the ODFF24 redefines portable flange facing with smart design, intuitive controls, and heavy-duty adaptability in one compact machine.
KEY FEATURES

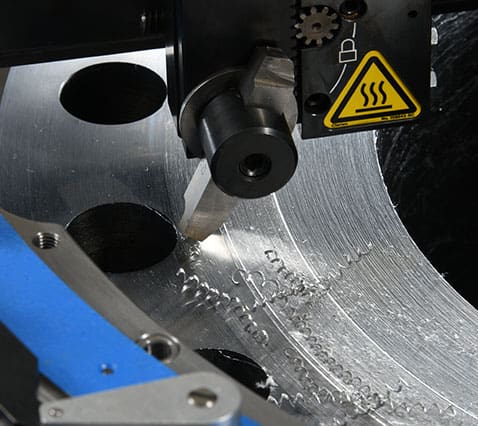

Precision machining: achieves flatness down to 0.006″ (0.152 mm) and surface finishes as smooth as 125 Ra (range: 125-500 Ra), ensuring highly accurate and repeatable results
Versatile machining capability: handles multiple flange types (facing, grooving, and beveling) and a wide range of materials
Power and control: integrated pneumatic control unit (PCU) with speed and feed adjustability

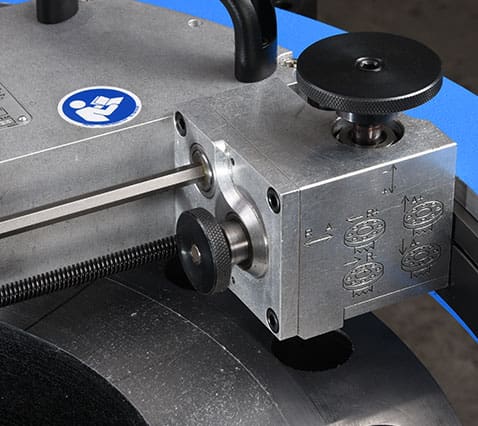

Adjustable feed rate: from 0-0.033″, allowing for precise control in both radial and axial directions during operation.
Quick set up: modular chuck foot mounting for flexible clamping
Built-in safety and operator comfort: pneumatic power, hands-free operation, and remote-mounted controls with emergency stop function reduce risk while improving ease of use in demanding environments
SET UP & OPERATION
Each machine is supplied in a protective custom-built metal box, with a single-page quick reference guide to streamline the setup process.
Determine chucking range and attach chucking feet
Mount to workpiece and level/center RDU
Install motor and slide assembly
Set up PCU and set the feed rate to zero
Gradually open the speed adjuster and engage the manual valve
Adjust feed and rotation speed for the desired finish
Use the emergency stop by releasing the valve handle
CERTIFICATION & COMPLIANCE
CE Compliant – Machinery Directive 2006/42/EC
ISO 9001:2015 – Quality management compliance
Meets ASME, API, and ANSI surface finish standards
APPLICATIONS
Resurfacing damaged or corroded flanges
Machining grooves or bevels on flat flanges
Preparing sealing surfaces in maintenance or shutdown operations
In-situ/on-site machining without the need for equipment removal
INDUSTRIES
Oil & gas
Petrochemical & refineries
Shipbuilding & offshore
Power generation
Water treatment & utilities
Mining & heavy industries
Aerospace and defense (for ground-based piping systems)
