KEY FEATURES

Effortless upgrade: Designed for bolt-on installation, transforming your existing machine into a high-performance servo-driven system while maximizing your current line boring investment

Purpose-built for performance & durability: Powered by a 1.5 kW or 3.1 kW IP67-rated servo motor with a rugged control case, built to perform in harsh environments

Precision control pendant: Compact handheld pendant provides real-time variable speed adjustment, directional control (clockwise and counterclockwise), and simple start/stop operation for precise, user-friendly machine control

Reliable power: Consistent torque and smooth operation across the full cutting range of each machine model

Enhanced performance: Increased power delivers improved machining speed, accuracy, and surface finish for tight-tolerance applications

Portable & versatile: Multiple power options support both shop and field use. The 1.5 kW kit is available in 110V or 220V single-phase, and the 3.1 kW kit operates on 220V for broad jobsite compatibility

Safe operation: Hands-free control allows operators to run the machine from a safe distance

Extended reach: Includes 5-meter control and power cables for flexible positioning around the job site (longer cable pack available upon request)

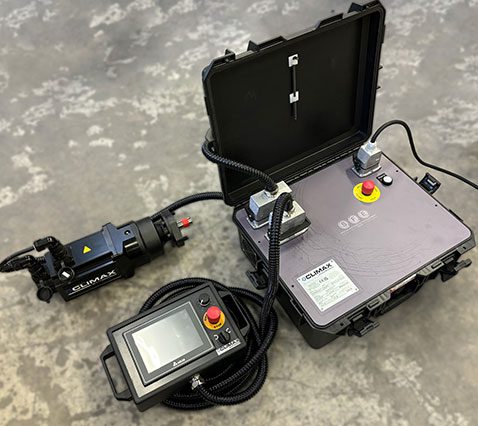

3.1 KW KIT ADVANCED CONTROL FEATURES

Digital RPM Display: Exact bar speed is displayed for precise operation

Integrated Speed Calculation: Automatically calculates optimal RPM based on bore size and cutting speed

Motor Load Indicator: Real-time load feedback allows operators to maximize performance or prevent overload

Calculated bar speed: RPM is calculated based on bore size and optimal cutting speed for accurate setup
