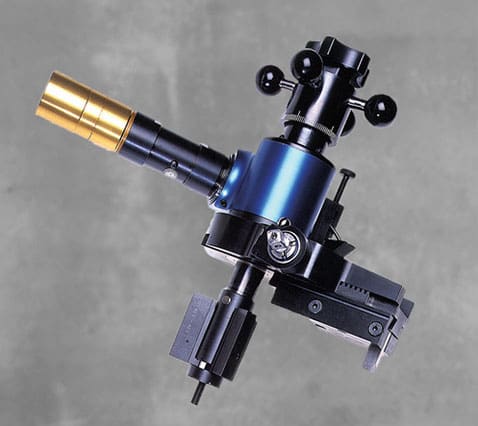

FF3000 FLANGE FACER

ID facing diameter: 1.5 – 12″ / 38.1 – 304.8 mm

The CLIMAX FF3000 Flange Facer is one of the most compact and versatile tools of its kind, engineered for fast, accurate flange facing in the field or shop. Its modular design and tool-less setup minimize downtime, allowing operators to quickly adapt to a wide range of flange configurations while maintaining consistent, high-quality machining results.

Featuring a bi-directional, infinitely variable feed, the FF3000 delivers exceptional control and surface finish when facing or beveling. With a facing diameter range from 1.5 to 12 inches (38.1 to 304.8 mm), this flange facing machine provides the speed, precision, and flexibility required for demanding maintenance, repair, and fabrication applications across multiple industries.

Category I/D MOUNT FLANGE FACERS

Description

Compact and Versatile

Patented, low profile machine is one of the most compact on the market today.

Lightweight, weighing only 35 lbs (15.9 kg).

Machine raised and flat flanges.

Bi-directional feed.

Optional beveling head connects with “Quick-Lock” system, making changeover quick & easy.

Quality Components

Pneumatic motor comes complete with filter, lubricator and flow control.

Compact, low-profile drive system engineered for superior power to weight ratio.

Features rugged main body, heavy-duty bearings, sealed lubrication, and rigid mounting system.

Cost Effective

Cuts costs in four ways:
Reduces downtime
Eliminates off-site machining costs
Eliminates leak sealing procedures
Reduces stock of replacement flange

Recoup the cost of a CLIMAX Flange Facer in the first few flange facing jobs.

Specifications

SPECIFICATIONS	INCH	METRIC
Facing Diameter	1.5 – 12″	38.1 – 304.8 mm
Milling Diameter	N/A	N/A
ID Mounting Diameter	1.5 – 6.75″	38.1 – 171.5 mm
OD Mounting Diameter	N/A	N/A
Power Option	Pneumatic	Pneumatic
