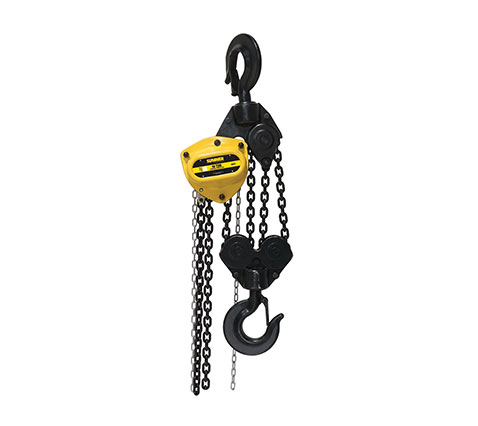

PREMIUM CHAIN BLOCK HOISTS WITH OVERLOAD PROTECTION
PREMIUM CHAIN BLOCK HOISTS WITH OVERLOAD PROTECTION - Image 2

PREMIUM CHAIN BLOCK HOISTS WITH OVERLOAD PROTECTION

Built-in overload protection prevents over-capacity lifts

Rated from 1 – 20 tons / 907 – 18,144 kg

Up to 30 ft / 9.14 m lifting height

Corrosion-resistant zinc phosphate chain

Designed for safety-critical lifting applications

Hardened steel sheave rollers

Compact, low-headroom configuration

ANSI/ASME, OSHA, CE compliant

1.5x tested for durability and safety

Perfect for energy, marine, and regulated industries

Category

Description

The SUMNER Material Lifts Premium Chain Block Hoist with Overload Protection offers safe, reliable lifting in critical environments. Its built-in overload clutch prevents lifting beyond rated capacity, protecting both operator and equipment. With capacities from 1 to 20 tons (907 – 18,144 kg) and chain lengths up to 30 ft / 9.14 m, it features a corrosion-resistant zinc phosphate chain and durable steel components. Compact and low-headroom, it’s ideal for utilities, marine, and industrial use, meeting ANSI/ASME, OSHA, and CE standards.

Specifications

Part No. Stock # Decription Lifting Weight Capacity
787448 PCB100C10WO 1 ton chain hoist with 10 ft chain fall w/ overload protection 1 ton / 2,000 lbs / 907 kg
787449 PCB100C15WO 1 ton chain hoist with 15 ft chain fall w/ overload protection 1 ton / 2,000 lbs / 907 kg
787450 PCB100C20WO 1 ton chain hoist with 20 ft chain fall w/ overload protection 1 ton / 2,000 lbs / 907 kg
787451 PCB100C30WO 1 ton chain hoist with 30 ft chain fall w/ overload protection 1 ton / 2,000 lbs / 907 kg
787452 PCB150C10WO 11/2 ton chain hoist with 10 ft chain fall w/ overload protection 1-½ ton / 3,000 lbs / 1,361 kg
787453 PCB150C15WO 11/2 ton chain hoist with 15 ft chain fall w/ overload protection 1-½ ton / 3,000 lbs / 1,361 kg
787454 PCB150C20WO 11/2 ton chain hoist with 20 ft chain fall w/ overload protection 1-½ ton / 3,000 lbs / 1,361 kg
787455 PCB150C30WO 11/2 ton chain hoist with 30 ft chain fall w/ overload protection 1-½ ton / 3,000 lbs / 1,361 kg
787456 PCB200C10WO 2 ton chain hoist with 10 ft chain fall w/ overload protection 2 ton / 4,000 lbs / 1,814 kg
787457 PCB200C15WO 2 ton chain hoist with 15 ft chain fall w/ overload protection 2 ton / 4,000 lbs / 1,814 kg
787458 PCB200C20WO 2 ton chain hoist with 20 ft chain fall w/ overload protection 2 ton / 4,000 lbs / 1,814 kg
787459 PCB200c30WO 2 ton chain hoist with 30 ft chain fall w/ overload protection 2 ton / 4,000 lbs / 1,814 kg
787460 PCB300c10WO 3 ton chain hoist with 10 ft chain fall w/ overload protection 3 ton / 6,000 lbs / 2,722 kg
787461 PCB300c15WO 3 ton chain hoist with 15 ft chain fall w/ overload protection 3 ton / 6,000 lbs / 2,722 kg
787462 PCB300c20WO 3 ton chain hoist with 20 ft chain fall w/ overload protection 3 ton / 6,000 lbs / 2,722 kg
787463 PCB300c30WO 3 ton chain hoist with 30 ft chain fall w/ overload protection 3 ton / 6,000 lbs / 2,722 kg
787464 PCB500c10WO 5 ton chain hoist with 10 ft chain fall w/ overload protection 5 ton / 10,000 lbs / 4,536 kg
787465 PCB500c15WO 5 ton chain hoist with 15 ft chain fall w/ overload protection 5 ton / 10,000 lbs / 4,536 kg
787466 PCB500C20WO 5 ton chain hoist with 20 ft chain fall w/ overload protection 5 ton / 10,000 lbs / 4,536 kg
787467 PCB500C30WO 5 ton chain hoist with 30 ft chain fall w/ overload protection 5 ton / 10,000 lbs / 4,536 kg
787468 PCB1KC10WO 10 ton chain hoist with 10 ft chain fall w/ overload protection 10 ton / 20,000 lbs / 9,072 kg
787469 PCB1KC15WO 10 ton chain hoist with 15 ft chain fall w/ overload protection 10 ton / 20,000 lbs / 9,072 kg
787470 PCB1KC20WO 10 ton chain hoist with 20 ft chain fall w/ overload protection 10 ton / 20,000 lbs / 9,072 kg
787471 PCB1KC30WO 10 ton chain hoist with 30 ft chain fall w/ overload protection 10 ton / 20,000 lbs / 9,072 kg
787472 Pcb1.5kc10WO 15 ton chain hoist with 10 ft chain fall w/ overload protection 15 ton / 30,000 lbs / 13,608 kg
787473 Pcb1.5kc15WO 15 ton chain hoist with 15 ft chain fall w/ overload protection 15 ton / 30,000 lbs / 13,608 kg
787474 Pcb1.5kc20WO 15 ton chain hoist with 20 ft chain fall w/ overload protection 15 ton / 30,000 lbs / 13,608 kg
787475 PCB1.5KC30WO 15 ton chain hoist with 30 ft chain fall w/ overload protection 15 ton / 30,000 lbs / 13,608 kg
787476 PCB2KC10WO 20 ton chain hoist with 10 ft chain fall w/ overload protection 20 ton / 40,000 lbs / 18,144 kg
787477 PCB2KC15WO 20 ton chain hoist with 15 ft chain fall w/ overload protection 20 ton / 40,000 lbs / 18,144 kg
787478 PCB2KC20WO 20 ton chain hoist with 20 ft chain fall w/ overload protection 20 ton / 40,000 lbs / 18,144 kg
787479 PCB2KC30WO 20 ton chain hoist with 30 ft chain fall w/ overload protection 20 ton / 40,000 lbs / 18,144 kg

Downloads

Premium Chain Block Hoist with Overload Protection Brochure

Premium Chain Block Hoist with Overload Protection Operators Manual
