1/8 – 12″ (10 – 330 mm) i/d

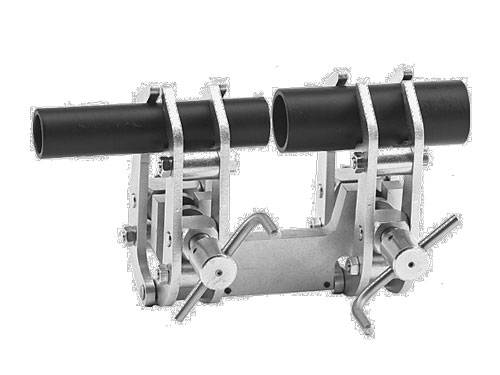

The FIT-UP PRO Scissor Clamp – Series 100 offers fast, accurate alignment for pipes of equal or differing diameters on a common centerline. Designed with automatic diameter compensation, it eliminates the need for manual adjustments, making setup quick and efficient. Its open design keeps all welding areas accessible. Constructed with stainless steel for compatibility with exotic materials, it is available in three sizes covering 1/8 – 12″ / 10 – 330 mm and weighs between 4.85 – 55 lbs / 2.20 – 25.00 kg. This clamp is ideal for field and shop applications requiring reliable and repeatable pipe alignment.
Chuyên dùng để căn chỉnh định tâm nhanh chóng và chính xác các ống có cùng đường kính hoặc khác nhau. Tự động bù đường kính mà không cần phải điều chỉnh thêm. Tất cả các chi tiết được gá kẹp chắc chắn, không vướng vùng hàn, giúp hàn dễ dàng.
For quick and accurate alignment of pipes of equal or differing diameters on a common centre line. Automatic diameter compensation. There’s no need to make additional adjustments. All parts stay easily accessible for welding.
| Part No. | Clamping Range ID | Weight |
| * 100-1 SS | 1/8 – 3″ / 10 – 70 mm | 4.85 lbs / 2.20 kg |
| * 100-2 SS | 1.5 – 5″ / 40 – 140 mm | 11.90 lbs / 5.40 kg |
| * 100-3 SS | 2.5 – 12″ / 75 – 330 mm | 55 lbs / 25.00 kg |
* Suitable for stainless steel
