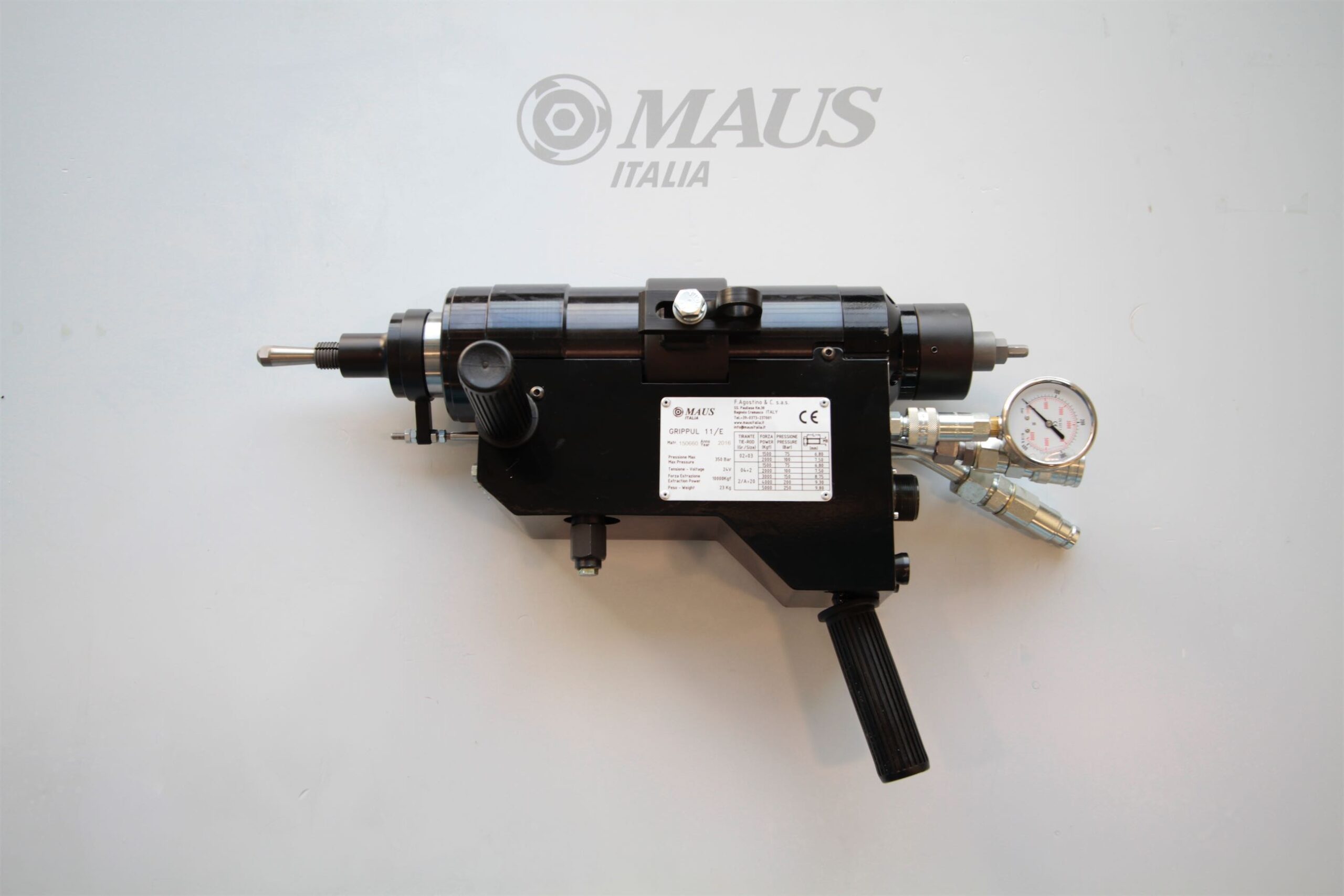

Grippul – Quick-attaching hydraulic stub puller
The Grippul series quick-attaching stub pullers are the result of Maus Italia’s more than thirty years experience in the field of tube pulling.
The Grippul comes in either electric or pneumatic models, is fitted with an integral remote control and is availabile in two models depending on upon pulling force ( Grippul 11 e Grippul 21 ).
When used with the BundleCut or the Kattex, it facilitates and speeds up tube-sheet refurbishment.
The Grippul puller comes supplied with:
- Grippul hydraulic extractor
- Carrying case
- Set of spare gaskets
- Set of service wrenches
- Pressure gauge
- Instruction booklet
- 2 No. hydraulic hoses
 |

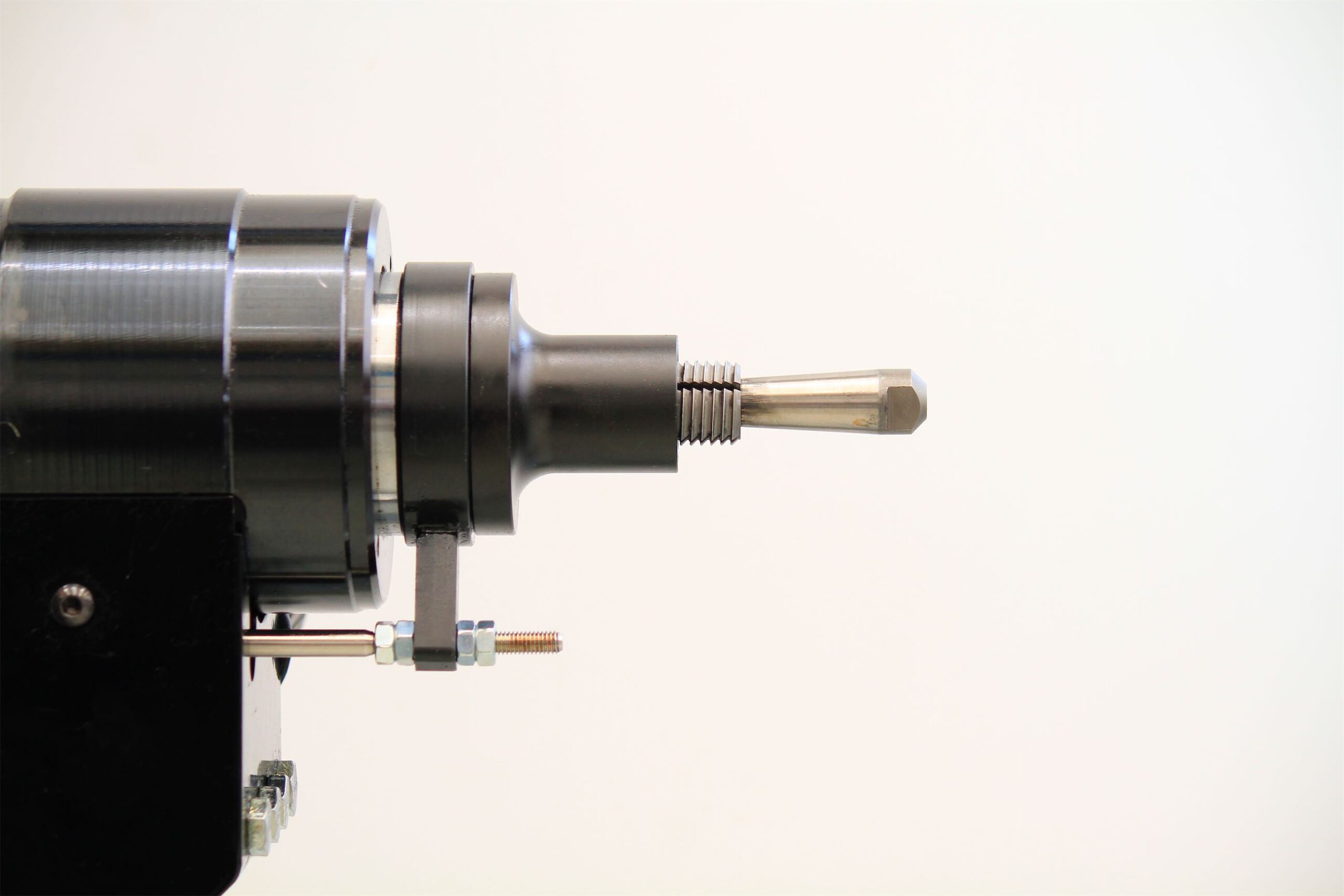

ABTS The ABTS “Anti-breaking tie-rod system” allows the force with which the jaw penetrates the tube to be regulated to suit the material and the diameter of the tube. |
 |
OPS The OPS “OverPressure switch” cuts off the delivery of the oil when the piston reaches the end of its stroke, preventing unnecessary overpressure of the system. |
 |
RC24 Remote control The RC24 remote control located beside the knobs facilitates and speeds up the extraction of the stubs. The remote control is on both the pneumatic and electric models. |
 |
RSR Revolving ring The RSR “Revolving support ring”, upon which the Grippul is suspended during use, allows for optimal positioning in spaces which are difficult to access. |
The Grippul puller is available in two models:
Grippul 11
The Grippul 11 model, with a pulling force of 10 kN, is for tubes from 1/2″ up to 1.1/2″ ( from 12,70 up to 68,10 mm )
Grippul 21
The Grippul 21 model, with a pulling force of 20 kN, is for tubes from 1″ up to 2.1/2″ ( from 25,40 up to 63,50 mm )
