Description

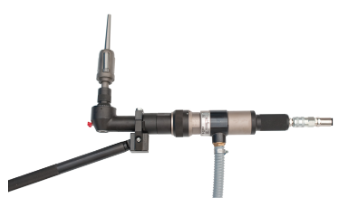

Minirol – Torque-controlled pneumatic rolling system with automatic reverse for tubes from 6,3 to 19,00 mm (from 1/4″ to 3/4″ )
Standard supply
- Carrying case
- Minirol pneumatic tube rolling system
- User manual
- F/311 quick connector
- Lubricator
- Air inlet spiral hose diam: 12×8 mm / L 10 m
- Air inlet tube connector 1/4″ GAS
- Silencer
- Set of blades
- Screwdriver for torque adjustment
- Auxiliary grip
Minirol pneumatic tube rolling system configurations
|
Technical specifications |
Minirol-2400 | Minirol-1100 | Minirol-600 | |
| Maximum torque | Nm ( Ft Lb ) | 2,4 ( 1.77 ) | 5,2 ( 3.84 ) | 9,5 ( 7.01 ) |
| Tubes diam. max ( est ) – Ferrous | mm ( inches ) | 6,3 ( 1/4″ ) | 9,5 ( 3/8″ ) | 9,5 ( 3/8″ ) |
| Tubes diam. max ( est ) – NOT Ferrous | mm ( inches ) | 12,7 ( 1/2″ ) | 15,9 ( 5/8″ ) | 19,0 ( 3/4″ ) |
